| Specifications | Me 109D | Me 109E | Me 109F-4 | Me 109G-6 | |
| Wingspan | Spannweite | 9,87 m | 9,87 m | 9,97 m | 9,97 m |
| Length | Länge | 8,64 m | 8,64 m | 8,94 m | 8,95 m |
| Height | Höhe | 2,60 m | 2,60 m | 2,45 m | 2,60 m |
| Wing area | Flügelfläche | 16,2 m² | 16,2 m² | 16,1 m² | 16,4 m² |
|
Engine |
Motor |
1 x Junkers
12-Zylinder-V-Motor Jumo 210 D 680 PS |
1 x Daimler-Benz 12-Zylinder-V-Motor DB 601 A-1 990 PS |
1 x Daimler-Benz 12-Zylinder-V-Motor DB 601 E 1350 PS |
1 x Daimler-Benz 12-Zylinder-V-Motor DB 605 A 1'475 PS |
| Maximum speed | Höchstgeschwindigkeit | 460 km/h | 570 km/h | 670 km/h | 650 km/h |
| Rate of climb | Steigleistung | ? | ? | ? | ? |
| Empty weight | Leergewicht | ? | 2'010 kg | 2'080 kg | 2'250 kg |
| Loaded weight | Startgewicht | 2'170 kg | 2'505 kg | 2'890 kg | 3'200 kg |
| Service ceiling | Gipfelhöhe | 9'500 m | 10'500 m | 11.600 m | 12.000 m |
| Range | Reichweite | ? | 800 km | 850 km | 850 km |
| Armament | Bewaffnung | 4 x 7,92-mm MG |
2
x 7,92-mm MG 2 x 20 mm Kanone |
2
x 7,92-mm MG 1 x 20 mm Kanone |
2
x 13.0-mm MG 1 x 20 mm Kanone |
Pictures of the Swiss Air Force
Messerschmitt Bf-109E J-355 (Photo courtesy Michael E. Fader)
Messerschmitt Bf-109E J-355 (Photo courtesy Michael E. Fader)
Messerschmitt Bf-109E J-355 (Photo courtesy Michael E. Fader)
Serials
Seriennummern
| Messerschmitt ME-109D, Swiss Air Force | |||||
| Typ | Buzz | s/n | Delivered | Withdrawn | Remarks |
| Bf-109D-1 | J-301 | 2297 | 19.1.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-302 | 2299 | 19.1.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-303 | 2295 | 17.12.1938 | 9.2.1948 | Crashed at Meiringen Air Base |
| Bf-109D-1 | J-304 | 2298 | 10.01.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-305 | 2300 | 5.1.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-306 | 2301 | 10.01.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-307 | 2302 | 7.1.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-308 | 2303 | 10.01.1939 | 2.9.1947 | Crashed at Payerne Air Base |
| Bf-109D-1 | J-309 | 2304 | 19.1.1939 | 28.12.1949 | ... |
| Bf-109D-1 | J-310 | 2305 | 5.1.1939 | 4.6.1940 | Shotdown by German Bf-110 |
| Messerschmitt ME-109E , Swiss Air Force | |||||
| Typ | Buzz | s/n | Delivered | Withdrawn | Remarks |
| ME-109E | J-311 | 2159 | 5. 07 1939 | 28. 12 1949 | ... |
| ME-109E | J-312 | 2160 | 20. 06 1939 | 3. 03 1940 | Write off |
| ME-109E | J-313 | 2161 | 20. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-314 | 2162 | 7. 05 1939 | 7. 06 1939 | Crashed near Altenrhein |
| ME-109E | J-315 | 2163 | 20. 06 1939 | 20. 11 1946 | ... |
| ME-109E | J-316 | 2164 | 20. 06 1939 | 26. 06 1942 | Crashed, flew into a Mountain near Schallenberg |
| ME-109E | J-317 | 2165 | 23. 06 1939 | 28. 12 1949 | ... |
| ME-109E | J-318 | 2166 | 28. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-319 | 2167 | 23. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-320 | 2168 | 24. 06 1939 | 9. 05 1947 | Crashed into Ahnenfirn |
| ME-109E | J-321 | 2169 | 28. 06 1939 | 28. 12 1949 | ... |
| ME-109E | J-322 | 2170 | 24. 06 1939 | 14. 07 1939 | Crashed near Netstal |
| ME-109E | J-323 | 2171 | 27. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-324 | 2172 | 27. 06 1939 | 28. 12 1949 | ... |
| ME-109E | J-325 | 2173 | 28. 06 1939 | 28. 12 1949 | ... |
| ME-109E | J-326 | 2174 | 27. 06 1939 | 28. 12 1949 | ... |
| ME-109E | J-327 | 2175 | 27. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-328 | 2176 | 27. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-329 | 2177 | 28. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-330 | 2178 | 29. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-331 | 2189 | 29. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-332 | 2190 | 29. 06 1939 | 20. 11 1946 | ... |
| ME-109E | J-333 | 2191 | 29. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-334 | 2192 | 29. 06 1939 | 7. 07 1944 | Crashed near Kägiswil |
| ME-109E | J-335 | 2193 | 30. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-336 | 2194 | 30. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-337 | 2195 | 30. 06 1939 | 20. 11 1946 | ... |
| ME-109E | J-338 | 2196 | 30. 06 1939 | 14. 08 1948 | ... |
| ME-109E | J-339 | 2197 | 30. 06 1939 | 2. 10 1946 | Collision with J-344 over Raron |
| ME-109E | J-340 | 2198 | 30. 06 1939 | 28. 12 1949 | ... |
| ME-109E | J-341 | 2362 | 10. 11 1939 | 14. 08 1948 | ... |
| ME-109E | J-342 | 2363 | 14. 04 1939 | 14. 08 1948 | ... |
| ME-109E | J-343 | 2364 | 8. 10 1939 | 14. 08 1948 | ... |
| ME-109E | J-344 | 2385 | 10. 10 1939 | 2. 10 1946 | collision with J-339 over Raron |
| ME-109E | J-345 | 2386 | 10. 10 1939 | 7. 07 1947 | crash landing at Fribourg |
| ME-109E | J-346 | 2403 | 8. 10 1939 | 14. 08 1948 | ... |
| ME-109E | J-347 | 2404 | 10. 10 1939 | 20. 11 1946 | ... |
| ME-109E | J-348 | 2405 | 12. 10 1939 | 20. 11 1946 | ... |
| ME-109E | J-349 | 2406 | 26. 10 1939 | 9. 02 1945 | crashed near Erwil |
| ME-109E | J-350 | 2407 | 26. 10 1939 | 20. 11 1946 | ... |
| ME-109E | J-351 | 2408 | 26. 10 1939 | 14. 08 1948 | ... |
| ME-109E | J-352 | 2409 | 7. 11 1939 | 14. 08 1948 | ... |
| ME-109E | J-353 | 2420 | 26. 10 1939 | 27. 06 1946 | Crash landing at Yverdon |
| ME-109E | J-354 | 2421 | 7. 11 1939 | 12. 10 1943 | crashed near Isenflue (run out of fuel) |
| ME-109E | J-355 | 2422 | 7. 11 1939 | 28. 12 1949 | Museum Dübendorf |
| ME-109E | J-356 | 2423 | 16. 12 1939 | 14. 08 1948 | ... |
| ME-109E | J-357 | 2438 | 16. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-358 | 2425 | 15. 12 1939 | 14. 08 1948 | ... |
| ME-109E | J-359 | 2426 | 6. 04 1940 | 23. 09 1943 | Crash landing at Buochs |
| ME-109E | J-360 | 2427 | 20. 12 1939 | 28. 12 1949 | ... |
| ME-109E | J-361 | 2428 | 9. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-362 | 2429 | 20. 12 1939 | 14. 08 1948 | ... |
| ME-109E | J-363 | 2430 | 18. 12 1939 | 14. 08 1948 | ... |
| ME-109E | J-364 | 2431 | 15. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-365 | 2432 | 5. 04 1940 | 10. 08 1942 | collision with J-466 over Gerzensee |
| ME-109E | J-366 | 2439 | 20. 12 1939 | 10. 08 1942 | collision with J-465 over Gerzensee |
| ME-109E | J-367 | 2440 | 15. 12 1939 | 14. 08 1948 | .... |
| ME-109E | J-368 | 2441 | 16. 12 1939 | 25. 06 1942 | flew into the Pilatus |
| ME-109E | J-369 | 2442 | 25. 04 1939 | 14. 08 1948 | ... |
| ME-109E | J-370 | 2451 | 16. 12 1939 | 14. 08 1948 | ... |
| ME-109E | J-371 | 2452 | 20. 04 1940 | 20. 11 1946 | ... |
| ME-109E | J-372 | 2453 | 10. 04 1940 | 20. 11 1946 | ... |
| ME-109E | J-373 | 2454 | 15. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-374 | 2455 | 23. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-375 | 2456 | 2. 12 1939 | 14. 08 1948 | ... |
| ME-109E | J-376 | 2457 | 9. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-377 | 2458 | 27. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-378 | 2459 | 20. 04 1940 | 5. 09 1944 | shot down near Neuaffoltern |
| ME-109E | J-379 | 2460 | 12. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-380 | 2461 | 26. 04 1940 | 27. 06 1946 | crash landing at Avanches |
| ME-109E | J-381 | 2373 | 25. 04 1940 | 26. 04 1948 | crash landing at Buochs |
| ME-109E | J-382 | 2374 | 27. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-383 | 2375 | 20. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-384 | 2376 | 16. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-385 | 2377 | 20. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-386 | 2378 | 15. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-387 | 2379 | 5. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-388 | 2380 | 6. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-389 | 2381 | 12. 04 1940 | 14. 08 1948 | ... |
| ME-109E | J-390 | 2392 | 20. 04 1940 | 28. 12 1949 | ... |
| ME-109E | J-391 | 2301 | 28. 04 1944 | 28. 03 1947 | crash landing at Payerne |
| ME-109E | J-392 | ... | 18. 07 1945 | 28. 12 1949 | ... |
| ME-109E | J-393 | ... | 10. 09 1945 | 28. 12 1949 | ... |
| ME-109E | J-394 | ... | 7. 12 1945 | 22. 05 1947 | collision with tree at Bemont |
| ME-109E | J-395 | .. | 7. 12 1945 | 28. 12 1949 | ... |
| ME-109E | J-396 | ... | 7. 12 1945 | 28. 12 1949 | ... |
| ME-109E | J-397 | ... | 21. 12 1945 | 28. 12 1949 | ... |
| ME-109E | J-398 | ... | 10. 01 1946 | 28. 12 1949 | ... |
| ME-109E | J-399 | ... | 19. 03 1946 | 28. 12 1949 | ... |
| Messerschmitt ME-109F , Swiss Air Force | |||||
| Typ | Buzz | s/n | Delivered | Withdrawn | Remarks |
| ME-109F-4/Z | J-715 | 7605 | 25. 07 1942 | 28. 05 1948 | former PC + JY |
| ME-109F-4/Z | J-716 | 7197 | 25. 07 1942 | 28. 05 1948 | former NW + KU |
| Messerschmitt ME-109G , Swiss Air Force | |||||
| Typ | Buzz | s/n | Delivered | Withdrawn | Remarks |
| ME-109G | J-701 | 163112 | 26. 05 1944 | 8. 09 1947 | former ST + RB |
| ME-109G | J-702 | 163230 | 26. 05 1944 | 8. 09 1947 | former ST + VP |
| ME-109G | J-703 | 163243 | 26. 05 1944 | 8. 09 1947 | former RQ + BG |

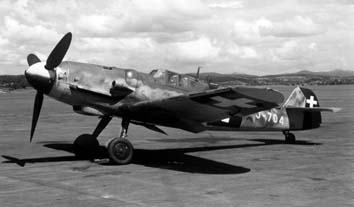

| ME-109G-10 | J-704 | 163245 | 26. 05 1944 | 13. 11 1946 | former RQ + BI, Write off in taxi accident at Interlaken |
| ME-109G | J-705 | 163248 | 26. 05 1944 | 8. 09 1947 | former RQ + BL |
| ME-109G | J-706 | 163251 | 26. 05 1944 | 8. 09 1947 | former RQ + BO |
| ME-109G | J-707 | 163804 | 26. 05 1944 | 28. 05 1947 | former NF + FE |
| ME-109G | J-708 | 163806 | 26. 05 1944 | 8. 09 1947 | former NF + FG |
| ME-109G | J-709 | 163808 | 26. 05 1944 | 8. 09 1947 | former NF + FI |
| ME-109G | J-710 | 163814 | 26. 05 1944 | 18. 06 1946 | former NF + FO, Ccrash landing at Buochs |
| ME-109G | J-711 | 163815 | 26. 05 1944 | 8. 09 1947 | former NF + FP |
| ME-109G | J-712 | 163816 | 26. 05 1944 | 8. 09 1947 | former NF + FQ |
| ME-109G-6 | J-713 | 162704 | 29. 03 1944 | 29. 05 1946 | former RU + OZ, Crashed into Pizzo Rodi |
| ME-109G-14 | J-714 | 261818 | 17. 12 1944 | 28. 05 1948 | ... |
